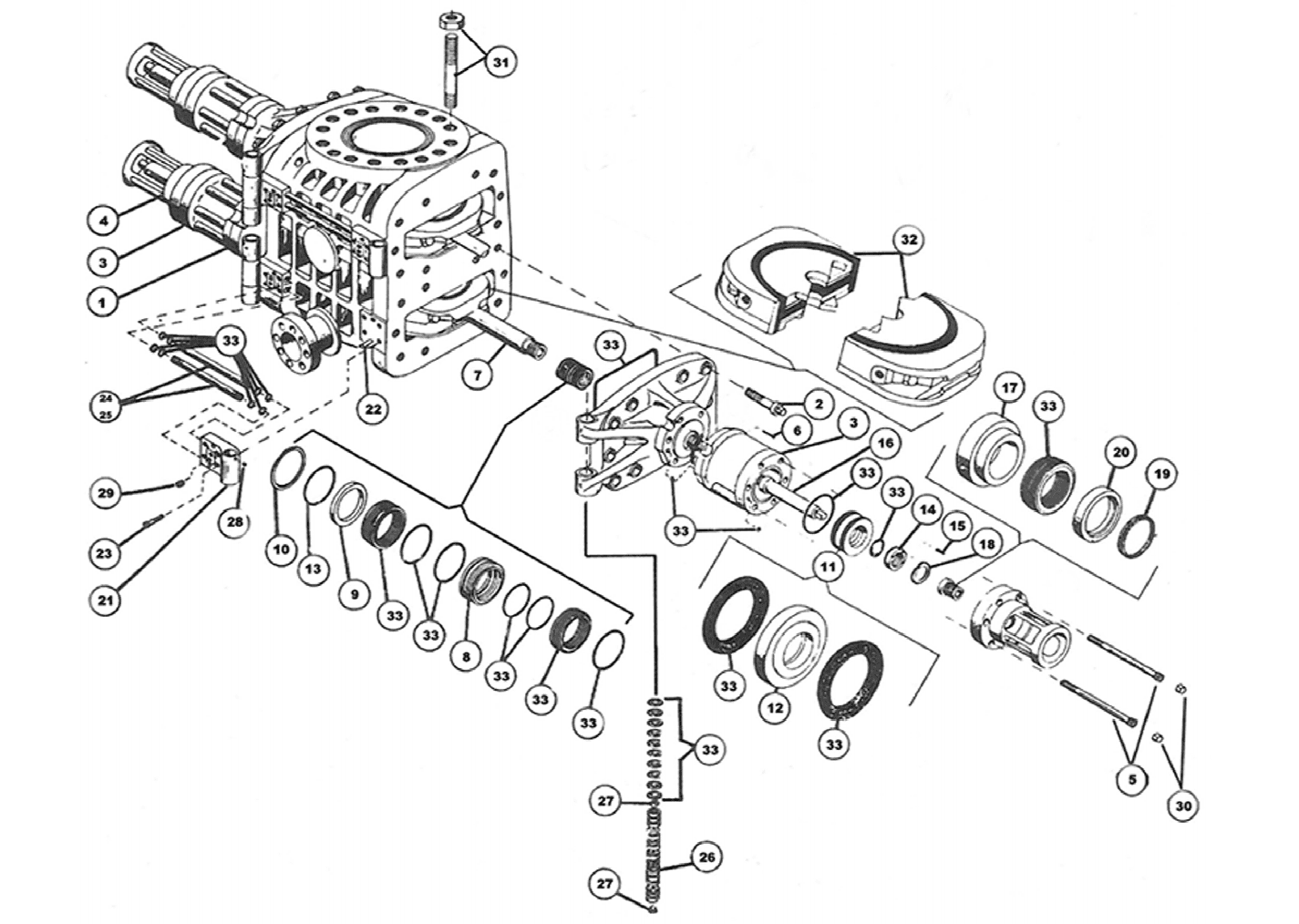

| Item No. | Description | Number Required ( Single Gate ) | Number Required ( Double Gate ) |
|---|---|---|---|
| 1 | Pipe Plug | 12 | 24 |
| 2 | Door Bolt | 16 | 32 |
| 3 | Cylinder | 2 | 4 |
| 4 | Cylinder Head | 2 | 4 |
| 5 | Cylinder Head Stud | 12 | 24 |
| 6 | Cap Screw | 4 | 8 |
| 7 | Ram Shaft | 2 | 4 |
| 8 | Packing Adapter, Ram Shaft | 2 | 4 |
| 9 | Wiper Ring Holder | 2 | 4 |
| 10 | Packing Back-up Ring Retainer | 2 | 4 |
| 11 | Piston Assembly | 2 | 4 |
| 12 | Piston Body | 2 | 4 |
| 13 | Scraper Ring, Ram Shaft | 2 | 4 |
| 14 | Piston Lock Nut | 2 | 4 |
| 15 | Lock Nut Set Screw | 4 | 8 |
| 16 | Locking Shaft | 2 | 4 |
| 17 | Thrust Bushing, Lock Shaft | 2 | 4 |
| 18 | Retainer, Thrust Bushing | 2 | 4 |
| 19 | Scraper Ring, Lock Shaft | 2 | 4 |
| 20 | Scraper Ring, Carrier | 2 | 4 |
| 21 | Hinge Bracket | 2 | 4 |
| 22 | Dowel Pin | 4 | 8 |
| 23 | Cap Screw, Hinge Bracket | 8 | 16 |
| 24 | Hinge Manifold, Straight | 1 | 2 |
| 25 | Hinge Manifold, Curved | 1 | 2 |
| 26 | Hinge Pin | 2 | 4 |
| 27 | Hinge Pin Plug | 4 | 8 |
| 28 | Hinge Pin Retainer | 2 | 4 |
| 29 | Thread Protector Plug | 4 | 8 |
| 30 | Cylinder Head Nut | 12 | 24 |
| 31 | Tap End Stud & Nut | ---- | ---- |
| 32 | Ram Assembly | 1 Set | 2 Set |
| 2 3/8" | |||
| 2 7/8" | |||
| 3 1/2" | |||
| 4" | |||
| 4 1/2" | |||
