All equipment pressure tested, NACE compliant, and Engineer certified

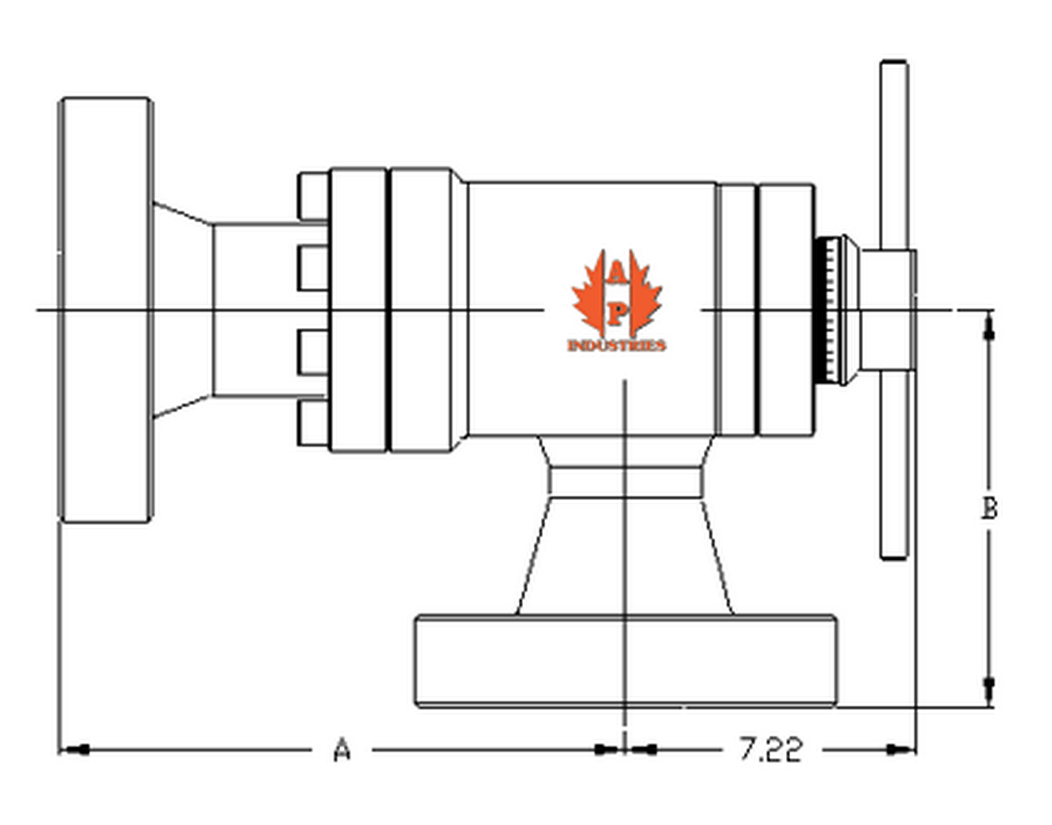

| Choke Size | Flange Sizes (in) | "A" (in) | "B" (in)/th> | Max Working Pressure (psi) | Weight (lbs) |
|---|---|---|---|---|---|
| A2 | 2" | 10.5 | 8.31 | 5000 | 115 |
| 3" | 11.13 | 9.19 | 5000 | 160 | |
| A2 | 3" | 13.44 | 9.25 | 3000 | 155 |
| 3" | 13.44 | 9.88 | 5000 | 188 |
| Specification | API 6A, 19th Edition |
| Nominal Bore Size | 2 1/16", 3 1/8" | Maximum Working Pressure | 3000 PSI 5000 PSI |
| Nominal Dimensions | See chart above |
| End Connections | 2 1 / 16" 5000(R24) Flanged, 3 1/18" 3000(R31) Flanged, 3 1/18" 5000(R35) Flanged |
| Metallic Materials Temperature Rating | Code P-T: -20°F to 180°F |
| Wellbore Elastomeric Materials Tenperature Rating | Code P-T: -20°F to 180°F |
| Service Class | :DD-NL, Sour Service, Alloy Steel Turning Fork, or...
:EE-0.5, Sour Service, Stainless Steel Turning Fork |
| PSL Level | 1 or 2 |
| Performance Requirements Level | PR1 |
| Paint Details | Determined by Customer |
| Post Deiveiy Contract Arrangements | Regulatory and Safety Requinements |
|---|---|
| Service on warrarty claims (12 months) | NACE MR0175 |
