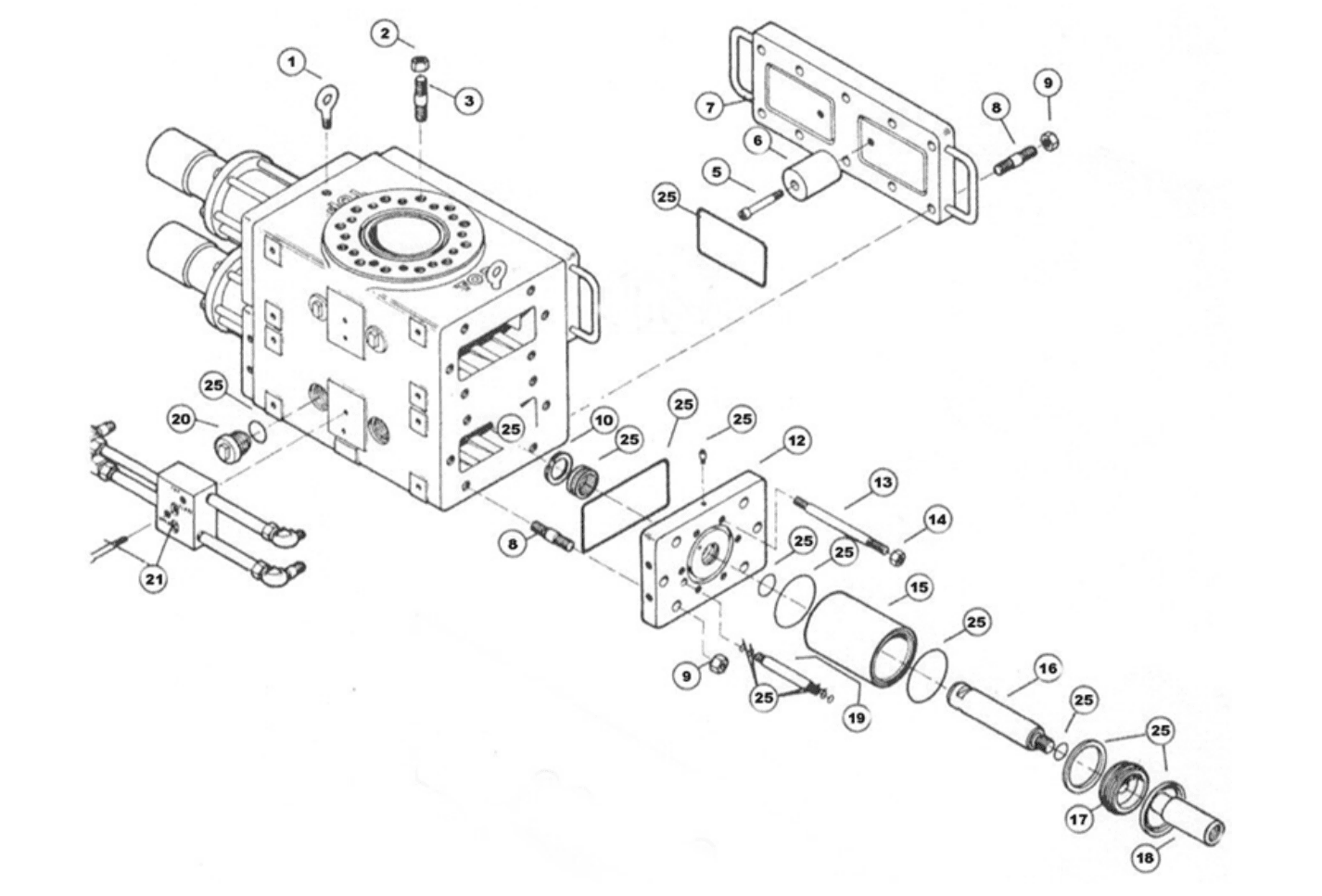

| Item No. | Description | Number Required ( Single Gate ) |
|---|---|---|
| 1 | Eye Bolt | 2 |
| 2 | Nut, Body | 12 |
| 3 | Stud, Body | 12 |
| 4 | Side Plate Seal | 2 |
| 5 | Socket Head Cap Screw | 2 |
| 6 | Aligment Pad | 2 |
| 7 | Side Plate Assembly | 1 |
| 8 | Stud, Door | 22 |
| 9 | Nut, Door | 22 |
| 10 | Retainer Ring | 2 |
| 11 | Bleed Plug | 2 |
| 12 | End Plate | 2 |
| 13 | Stud | 12 |
| 14 | Nut | 12 |
| 15 | Cylinder | 2 |
| 16 | Ram Shaft | 2 |
| 17 | Piston | 2 |
| 18 | Piston Nut | 2 |
| 19 | Manifold Pipe | 2 |
| 20 | Alignment Plug | 2 |
| 21 | Modified Hydraulic Porting Assembly | 2 |
| 22* | Ram Puller | 2 |
| 23* | 1/2" Pipe Plug | 8 |
| 24* | 5/8" Pipe Plug | 4 |
| 25 | Seal Kit | 1 |
| 26 | Ram Assembly | 1 Set |
| * Not Illustrated | ||
