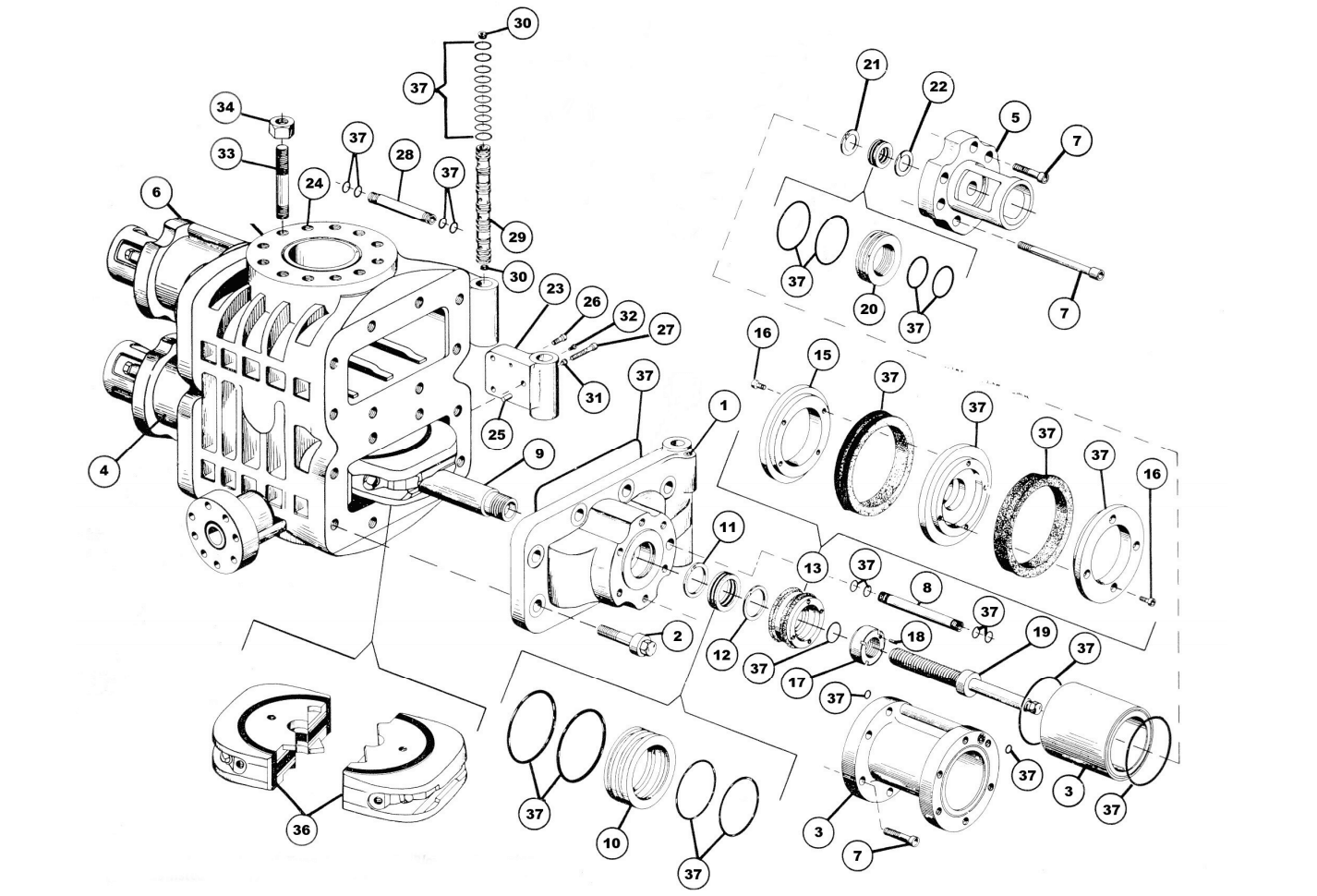

Item No.	Description	Number Required ( Single Gate )	Number Required ( Double Gate )
1	Door Plug, Left Hand	2	4
2	Cap Screw, Door	12	24
""	"" ""	16	32
3	Cylinder, Right Hand	1	2
4	Cylinder, Left Hand	1	2
5	Cylinder Head, Right Hand	1	2
6	Cylinder Head, Left Hand	1	2
7	Cap Screw, Cylinder and Cylinder Head	4	8
8	Manifold, Cylinder	2	4
9	Ram Shaft	2	4
10	Ram Shaft Packing Adapter	2	4
11	Retainer Packing Adapter	2	4
12	Ram Shaft Scraper Ring	2	4
13	Piston Assembly	2	4
14	Body	2	4
15	Retainer, Rubber	4	8
16	Cap Screw, Rubber Retainer	16	32
17	Locknut Piston	2	4
18	Set screw	2	4
19	Locking Shaft	2	4
20	Thrust Bushing, Locking Shaft	2	4
21	Retainer, Thrust Bushing	2	4
22	Scraper Ring, Locking Shaft	2	4
23	Hinge Bracket, Right	1	2
24	Hinge Bracket, Left	1	2
25	Dowel Pin	4	8
26	Cap Screw, Hinge, Bracket -- Short	4	8
""	"" ""	8	16
27	Cap Screw, Hinge, Bracket -- Long	4	8
28	Manifold, Hinge -- Straight	2	4
29	Hinge Pin	2	4
30	Plug	4	8
31	Retainer, Hinge Pin	2	4
32	Plug, Thread Protector	4	8
33	Stud, Body	24	24
""	"" ""	32	32
34	Nut, Body Stud	24	24
""	"" ""	32	32
35	API ring	2	2
36	Ram Assembly	----	----
2 3/8"
2 7/8"
3 1/2"
4"
4 1/2"

The weight in the above table is based on upper and lower flange form.

LWS TYPE BOP
