SERIES 4 SRC

ASSEMBLY PART #: R7065004-100

N
ITEM QTY DWG/PRT # DESCRIPTION MATERIAL/SIZE
R7065003-100SP SPECIFICATIONS
R7065004-100 B.O.P. ASSEMBLY

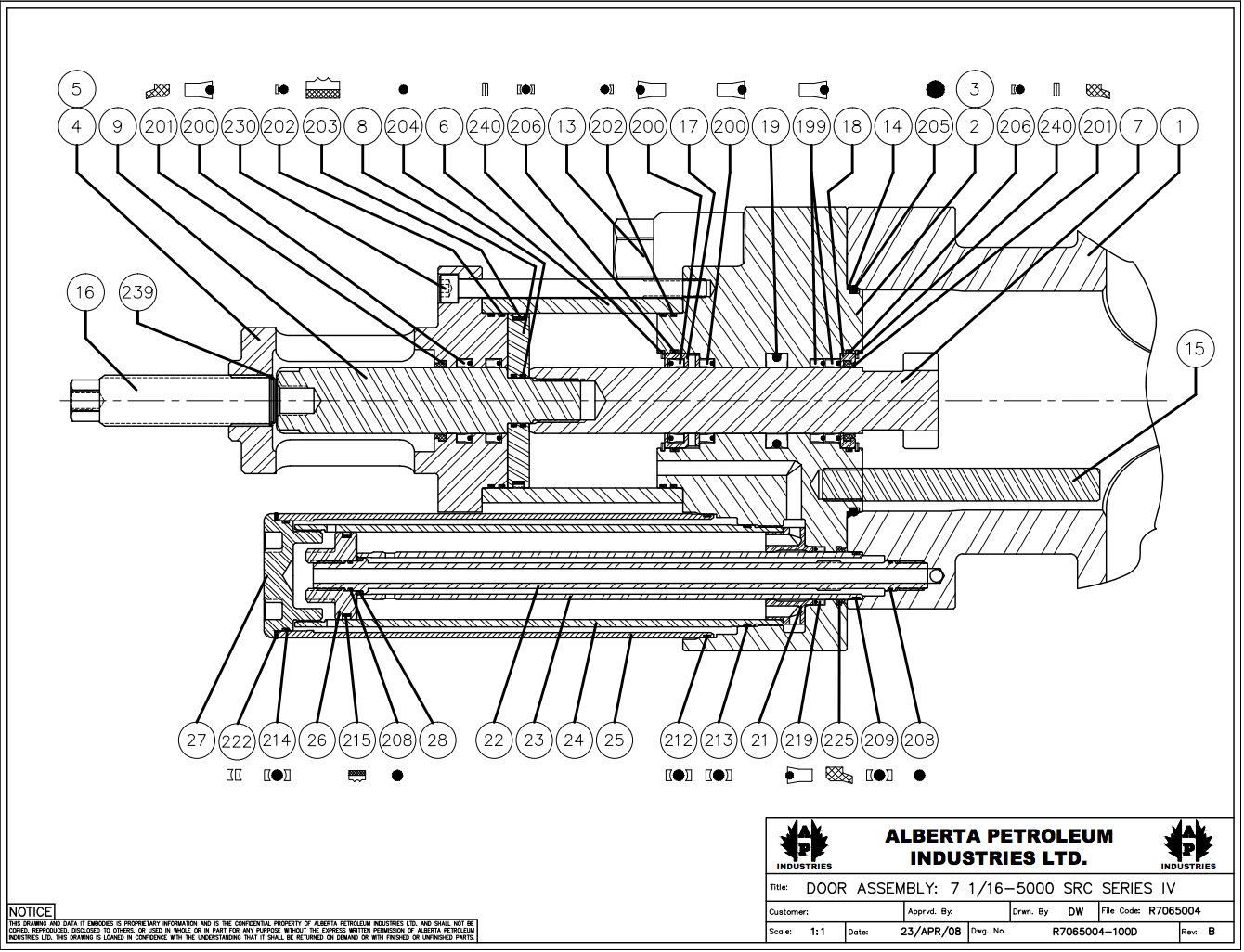

R7065004-100D DOOR ASSEMBLY DETAIL
R7065003-100H HYDRAULIC LINE CONNECTIO
R7065002-100C CONDUCTOR TUBE ASSEMBLY
R7065002-100S SAFETY SEAL ASSEMBLY
1 1 R7065003-58 7 5m SRC BODY FLANGED X ROTATING FLANGE 4130 NACE
2 1 R7065004-05R 7 5m SRC RIGHT DOOR 4130 NACE
3 1 R7065004-05L 7 5m SRC LEFT DOOR 4130 NACE
4 1 R7065003-06R 7 5m SRC RIGHT CYLINDER HEAD 4130 NACE
5 1 R7065003-06L 7 5m SRC LEFT CYLINDER HEAD 4130 NACE
6 2 R7065001-10 7 5m SRC HYDRAULIC CYLINDER MICRO HONED TUBING
7 2 R7065001-11 7 5m SRC RAM SHAFT 4130 NACE
8 2 R7065001-12 7 5m SRC PISTON 4140 HT & SR
9 2 R7065001-13 7 5m SRC PISTON SHAFT INDUCTION HARD BAR
10 4 R7065003-14 7 5m SRC TORQUE SLEEVE 4130 NACE
11 4 R7065002-15 7 5m SRC SLIDE STUD B7 STUD NACE
12 4 R7065002-16 7 5m SRC LOCK STUD B7 STUD NACE
13 8 R7065002-17 7 5m SRC STUD NUT B7 STUD NACE
15 2 R7065002-19 7 5m SRC BLOCK GUIDE B7 STUD NACE
16 2 R7065003-20 7 5m SRC NIGHT LOCK SCREW 17.4 PH-SS
17 2 R7065003-33 7 5m SRC HYDRAULIC SEAL CARRIER 17.4 PH-SS
18 2 R7065003-34 7 5m SRC WELL BORE SEAL CARRIER 17.4 PH-SS, H-1150 NACE
21 2 R9003004-25 9 3m CWD DOOR ADAPTER 660 BRONZE
22 2 R7065004-26 7 5m SRC BODY ANCHOR TUBE .5" x 1.25" MECH. TUBE
23 2 R7065004-27 7 5m SRC PISTON SLEEVE 1.25" x 1.75" MECH. TUBE
24 2 R7065004-28 7 5m SRC PISTON CYLINDER 3" x 3.5" HONED TUBE
25 2 R7065004-29 7 5m SRC PISTON HOUSING 3.75" x 4.25" MECH. TUBE
26 2 R7065002-30 7 5m SRC DOOR PISTON 4140 HT & SR
27 2 R7065002-31 7 5m SRC CYLINDER RETAINER 4140 HT & SR
34 2 R7065002-09 7 5m SRC CONDUCTOR TUBE .5" x 1.0" MECH. TUBE
36 2 R7065002-37 7 5m SRC RAM SHAFT SEAL SENSOR
2 R7065003-39 7 5m SRC ROTATING FLG HANDLE
1 R7065003-ASK 7 5m SRC ASSEMBLY SEAL KIT
