SERIES API-GVO-3-5M: GATE VALVE OPERATOR

PARTS LIST: GVO-5-50P, REV.B

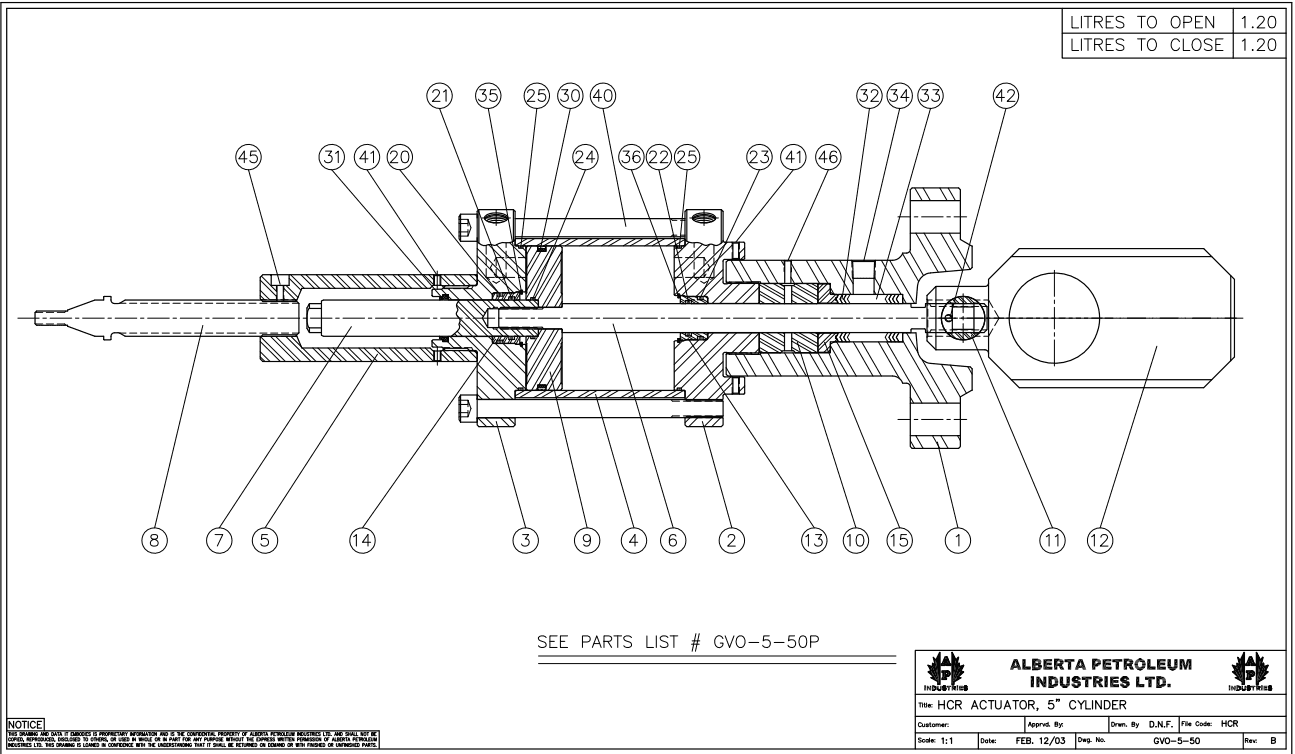

SEE DWG.#: GVO-5-50, REV.B

SEP.09, 2003

ITEM	QTY	DWG.#	DESCRIPTION	MATERIAL / SIZE
1	1	GVO-5-01	BONNET	AS SUPPLIED
2	1	GVO-5-02	BOTTOM CAP	4140 HT & SR
3	1	GVO-5-03	TOP CAP	4140 HT & SR
4	1	GVO-5-04	CYLINDER	MICRO HONED TUBING
5	1	GVO-5-05	STEM GUARD	4140 HT & SR
6	1	GVO-5-06	VALVE STEM	17.4 SS - H1150
7	1	GVO-5-07	TOP STEM	1 1/4" IHCP
8	1	GVO-5-08	LOCK DOWN STEM	4140 HT & SR
9	1	GVO-5-09	PISTON	ALUMINIUM, (40 ksi MIN.)
10	1	GVO-5-10	STEM GUIDE	4140 HT & SR
11	1	GVO-5-11	STEM NUT	4130 NACE
12	1	GVO-5-12	3"x5M REVERSE GATE	4130 NACE
13	1	GVO-5-13	BOTTOM CAP SEAL CARRIER	4140 HT & SR
14	1	GVO-5-14	TOP CAP SEAL CARRIER	4140 HT & SR
15	1	GVO-IG	INDICATOR GLASS
20	1	GVO-5-50	"O"-RING	N1470-2-221
21	1	GVO-5-50	"O"-RING	N1470-2-218
22	1	GVO-5-50	"O"-RING	N1470-2-214
23	1	GVO-5-50	"O"-RING	N1470-2-217
24	1	GVO-5-50	"O"-RING	N1470-2-124
25	2	GVO-5-50	"O"-RING	N1470-2-157
30	1	GVO-5-50	PISTON SEAL	PSP-350
31	1	GVO-5-50	WIPER	SHD-1250
32	1	GVO-5-50	STEM PACKING	WSTMP-3
33	1	GVO-5-50	ENERGIZING STICK PACKING
34	1	CHC-TAG	API TAG
35	1	GVO-5-50	SNAP RING	HO-156
36	1	GVO-5-50	SNAP RING	HO-181
40	8	GVO-5-50	CAP SCREW	5/8" UNCx8.5" LONG
41	3	GVO-5-50	HALF DOG SET SCREW	5/16" UNCx1/2" LONG
42	2	GVO-5-50	HALF DOG SET SCREW	1/4" UNCx1/2" LONG
45	1	GVO-5-50	GREASE ZERK	1/4-28 NFGS
46	2		1/2" NPT SQPP
