| ITEM | QTY | DWG/PRT # | DESCRIPTION | MATERIAL/SIZE |
|---|---|---|---|---|

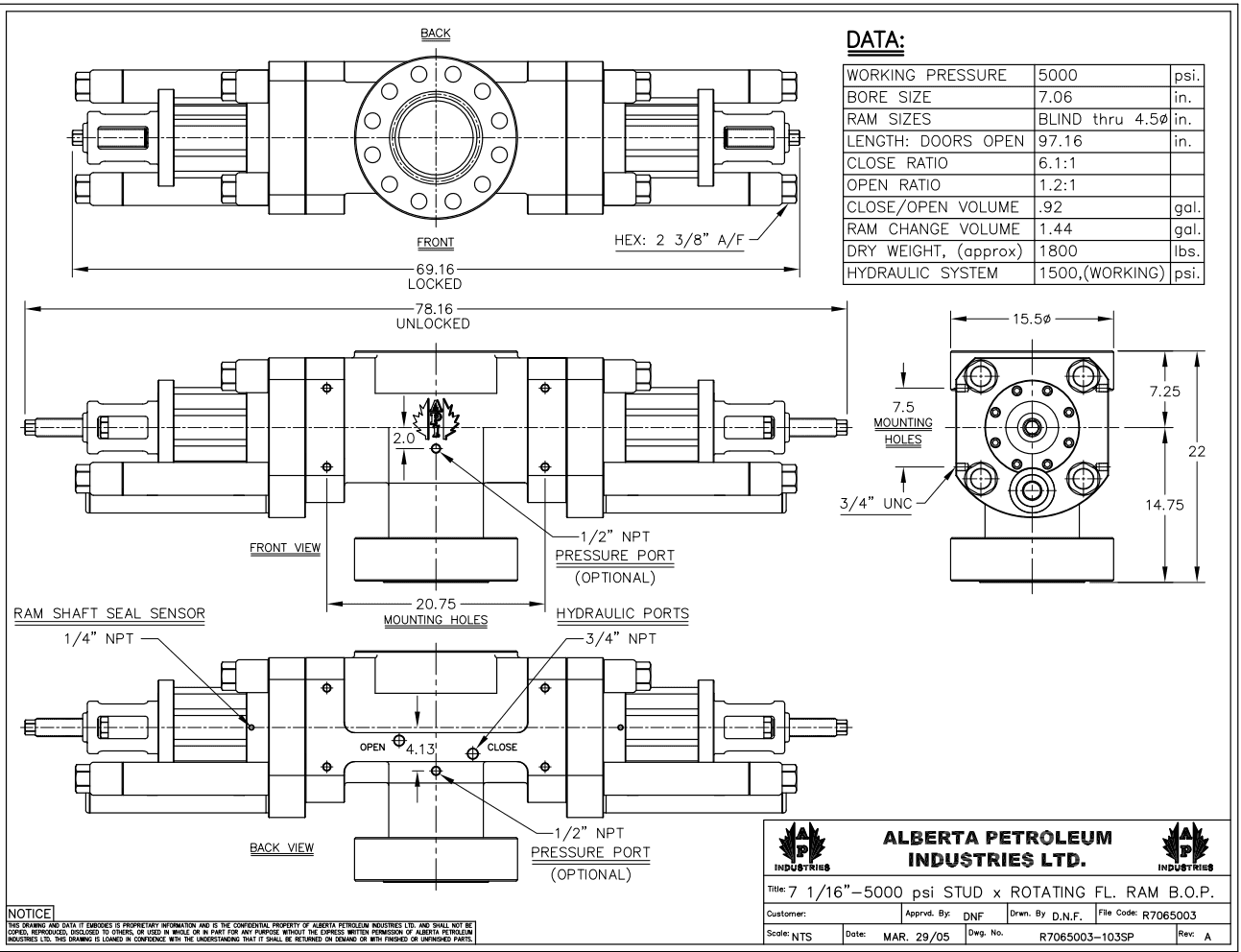

| R7065003-100SP | SPECIFICATIONS | |||
| R7065003-100 | B.O.P. ASSEMBLY | |||

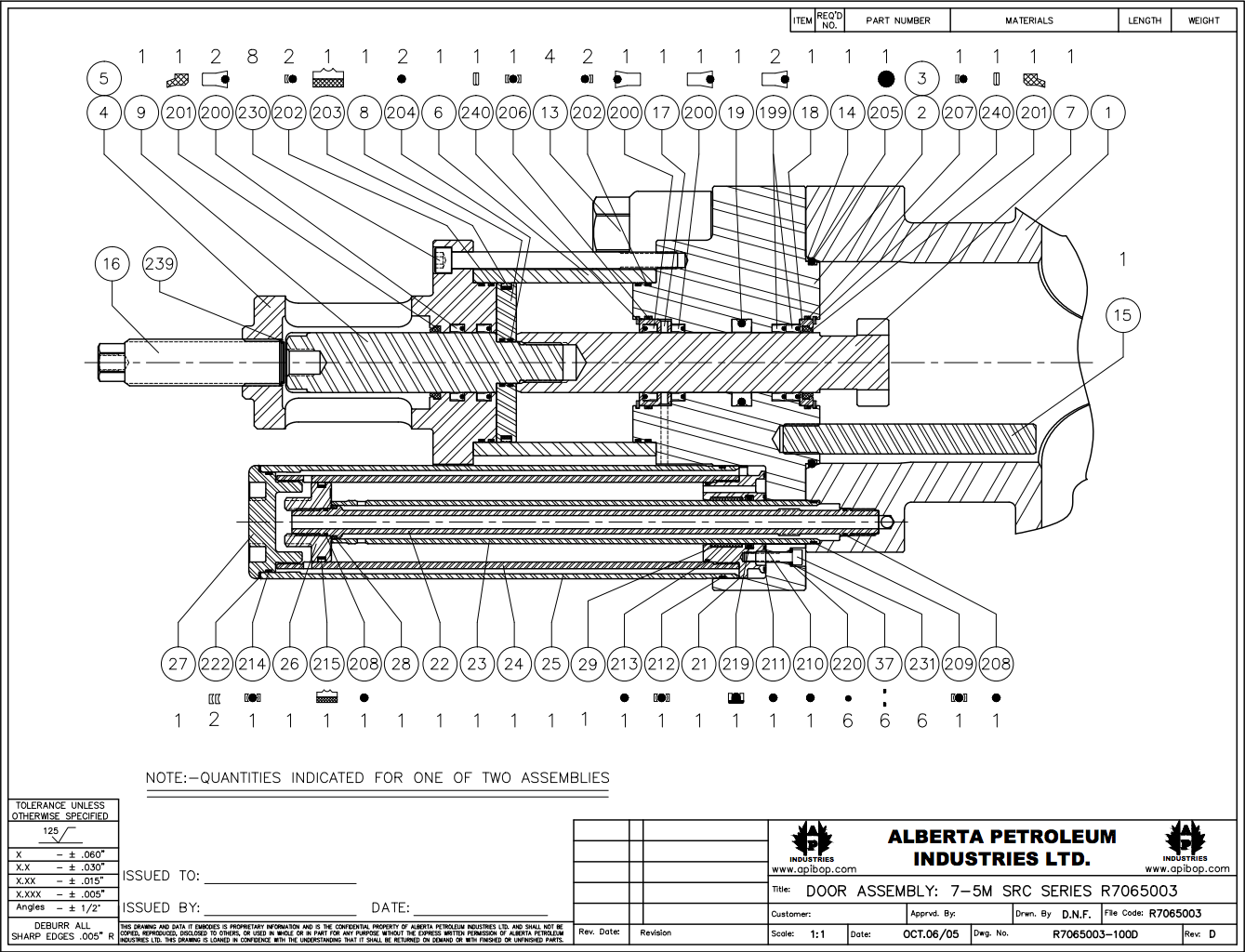

| R7065003-100D | DOOR ASSEMBLY DETAIL | |||
| R7065003-100H | HYDRAULIC LINE CONNECTION | |||
| R7065002-100C | CONDUCTOR TUBE ASSEMBLY | |||
| R7065002-100S | SAFETY SEAL ASSEMBLY | |||
| 1 | 1 | R7065003-58 | 7 5m SRC BODY FLANGED X ROTATING FLANGE | 4130 NACE |
| 2 | 1 | R7065003-05R | 7 5m SRC RIGHT DOOR | 4130 NACE |
| 3 | 1 | R7065003-05L | 7 5m SRC LEFT DOOR | 4130 NACE |
| 4 | 1 | R7065003-06R | 7 5m SRC RIGHT CYLINDER HEAD | 4130 NACE |
| 5 | 1 | R7065003-06L | 7 5m SRC LEFT CYLINDER HEAD | 4130 NACE |
| 6 | 2 | R7065001-10 | 7 5m SRC HYDRAULIC CYLINDER | MICRO HONED TUBING |
| 7 | 2 | R7065001-11 | 7 5m SRC RAM SHAFT | 4130 NACE |
| 8 | 2 | R7065001-12 | 7 5m SRC PISTON | 4140 HT & SR |
| 9 | 2 | R7065001-13 | 7 5m SRC PISTON SHAFT | INDUCTION HARD BAR |
| 10 | 4 | R7065003-14 | 7 5m SRC TORQUE SLEEVE | 4130 NACE |
| 11 | 4 | R7065002-15 | 7 5m SRC SLIDE STUD | B7 STUD NACE |
| 12 | 4 | R7065002-16 | 7 5m SRC LOCK STUD | B7 STUD NACE |
| 13 | 8 | R7065002-17 | 7 5m SRC STUD NUT | B7 STUD NACE |
| 15 | 2 | R7065002-19 | 7 5m SRC BLOCK GUIDE | B7 STUD NACE |
| 16 | 2 | R7065003-20 | 7 5m SRC NIGHT LOCK SCREW | 17.4 PH-SS |
| 17 | 2 | R7065003-33 | 7 5m SRC HYDRAULIC SEAL CARRIER | 17.4 PH-SS |
| 18 | 2 | R7065003-34 | 7 5m SRC WELL BORE SEAL CARRIER | 17.4 PH-SS, H-1150 NACE |
| 21 | 2 | R7065002-25 | 7 5m SRC DOOR ADAPTER | 4140 HT & SR |
| 22 | 2 | R7065002-26 | 7 5m SRC BODY ANCHOR TUBE | .5" x 1.25" MECH. TUBE |
| 23 | 2 | R7065002-27 | 7 5m SRC PISTON SLEEVE | 1.25" x 1.75" MECH. TUBE |
| 24 | 2 | R7065002-28 | 7 5m SRC PISTON CYLINDER | 3" x 3.5" MECH. TUBE |
| 25 | 2 | R7065002-29 | 7 5m SRC PISTON HOUSING | 3.75" x 4.25" MECH. TUBE |
| 26 | 2 | R7065002-30 | 7 5m SRC DOOR PISTON | 4140 HT & SR |
| 27 | 2 | R7065002-31 | 7 5m SRC CYLINDER RETAINER | 4140 HT & SR |
| 34 | 2 | R7065002-09 | 7 5m SRC CONDUCTOR TUBE | .5" x 1.0" MECH. TUBE |
| 36 | 2 | R7065002-37 | 7 5m SRC RAM SHAFT SEAL SENSOR | |
| 2 | R7065003-39 | 7 5m SRC ROTATING FLG HANDLE | ||
| 1 | R7065003-ASK | 7 5m SRC ASSEMBLY SEAL KIT |
