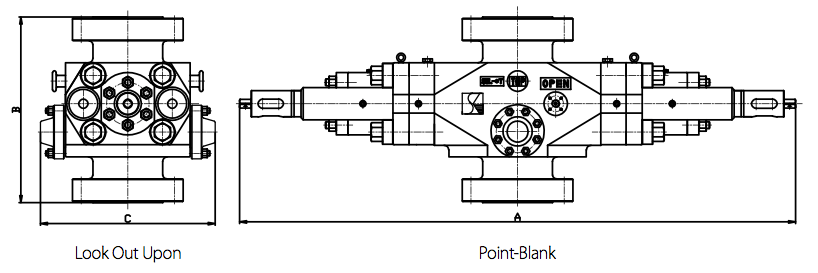

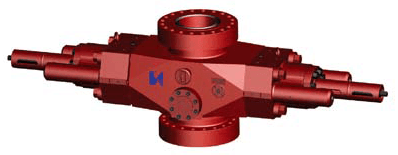

A-1: Length - the ram is closed and the locking shaft is locked up
A-2: Length - the ram is opened and the locking shaft is not locked up
B: Height - flange connection
C: Width - excluding the bypass outlet
| Size (in.) | Working pressure (psi) | Vertical Path (in.) | A-1 (mm) | A-2 (mm) | B (mm) | C (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| 7 1/16 | 3,000 | 7 1/16 | 1880 | 2780 | 611 | 515 | 1400 |
| 7 1/16 | 5,000 | 7 1/16 | 1880 | 2780 | 699 | 515 | 1500 |
| 7 1/16 | 10,000 | 7 1/16 | 2487 | 3363 | 1216 | 757 | 2150 |
| 7 1/16 | 15,000 | 7 1/16 | 2477 | 3273 | 832 | 768.8 | 2120 |
| 11 | 3,000 | 11 | 3105 | 4165 | 750 | 640 | 2406 |
| 11 | 5,000 | 11 | 3105 | 4165 | 898 | 648 | 4200 |
| 11 | 10,000 | 11 | 3200 | 4250 | 910 | 655 | 4300 |
| 11 | 15,000 | 11 | 3325 | 4413 | 1205 | 820 | 6725 |
| 13 5/8 | 3,000 | 13 5/8 | 3200 | 4356 | 795 | 743 | 3260 |
| 13 5/8 | 5,000 | 13 5/8 | 3627 | 4895 | 982 | 840 | 6540 |
| 13 5/8 | 10,000 | 13 5/8 | 3768 | 5046 | 1135 | 850 | 6640 |
| 13 5/8 | 15,000 | 13 5/8 | 3530 | 5460 | 1360 | 1000 | 10800 |
| 20 3/4 | 3,000 | 20 3/4 | 4120 | 5800 | 1030 | 1120 | 8100 |
| 21 1/4 | 2,000 | 21 1/4 | 4120 | 5800 | 940 | 1110 | 7600 |
