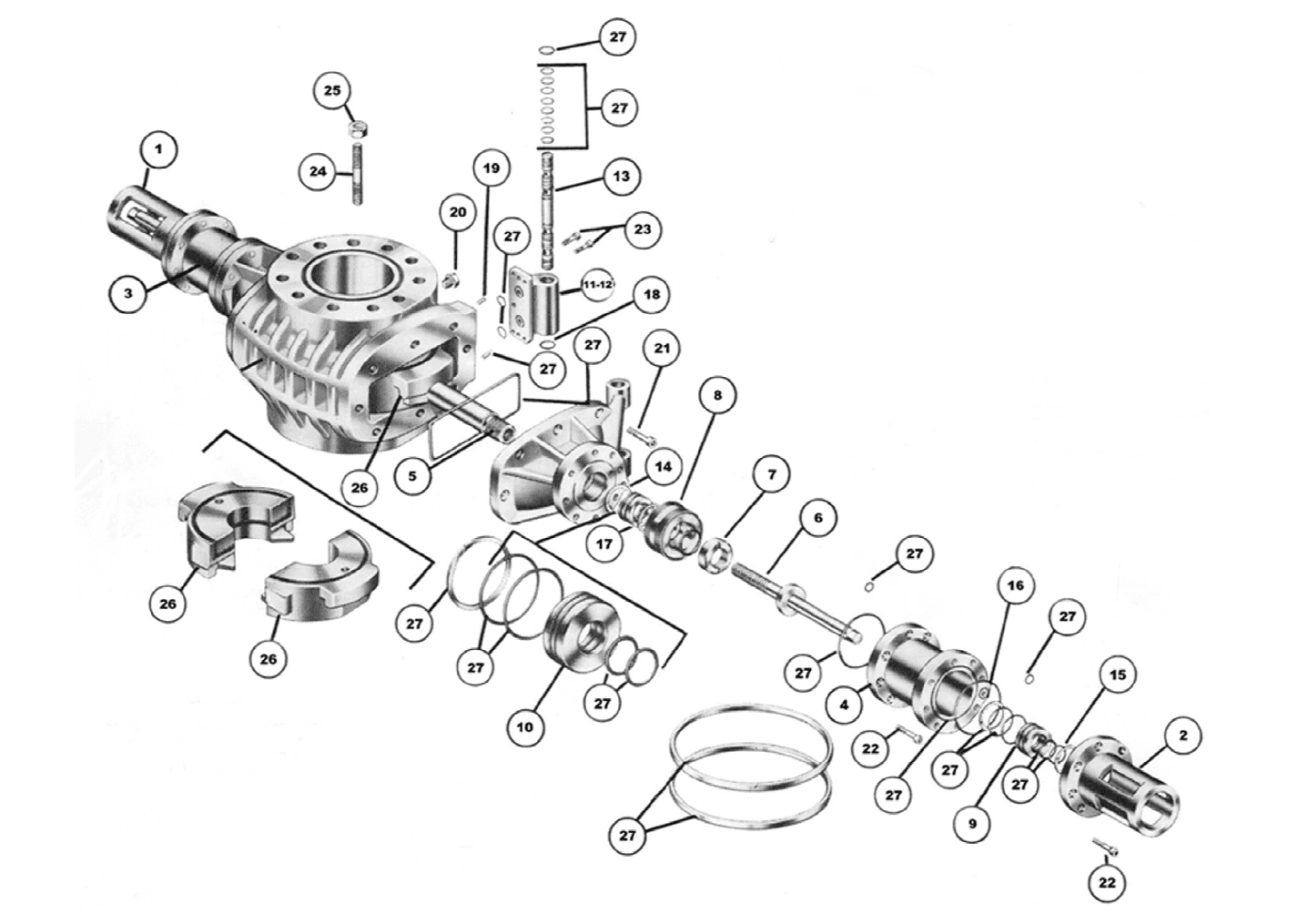

| Item No. | Description | Number Required ( Single Gate ) | Number Required ( Double Gate ) |
|---|---|---|---|
| 1 | Cylinder Assembly, Right Hand | 1 | 2 |
| 2 | Cylinder Assembly, Left Hand | 1 | 2 |
| 3 | Cylinder, Right Hand | 1 | 2 |
| 4 | Cylinder, Left Hand | 1 | 2 |
| 5 | Shaft, Ram | 2 | 4 |
| 6 | Shaft, Locking | 2 | 4 |
| 7 | Locknut, Piston | 2 | 4 |
| 8 | Piston | 2 | 4 |
| 9 | Bushin, Locking Shaft Thrust | 2 | 4 |
| 10 | Packing Adapter | 2 | 4 |
| 11 | Hinge Bracket Assembly, Right Hand | 1 | 2 |
| 12 | Hinge Bracket Assembly, Left Hand | 1 | 2 |
| 13 | Hinge Pin | 2 | 4 |
| 14 | Scraper Ring, Ram Shaft | 2 | 4 |
| 15 | Scraper Ring, Locking Shaft | 2 | 4 |
| 16 | Retainer, Thrust Bushing | 2 | 4 |
| 17 | Retainer, Packing Adapter | 2 | 4 |
| 18 | Retainer, Hinge Pin | 4 | 8 |
| 19 | Dowel Pin | 4 | 8 |
| 20 | Plug, Thread Protector | 2 | 4 |
| 21 | Cap Screw, Door | 16 | 32 |
| 22 | Cap Screw, Cylinder & Cylinder Head | 24 | 48 |
| 23 | Cap Screw, Hinge Bracket | 10 | 20 |
| "" | "" "" | 8 | 16 |
| 24 | Stud, Body (Studded) | 24 | 24 |
| "" | Stud, Body (Flanged) | 24 | 24 |
| 25 | Nut, Body Stud (Studded) | 24 | 24 |
| "" | Nut, Body Stud (Flanged) | 48 | 48 |
| 26 | Ram Block | ---- | ---- |
| 2 3/8" | |||
| 2 7/8" | |||
| 3 1/2" | |||
| 4" | |||
| 4 1/2" | |||
